The solution combines VPX and high-speed data acquisition card to realize the functions of high-speed data acquisition, real-time signal processing and broadband mass storage, and has the characteristics of solid volume, anti-interference and vibration resistance.

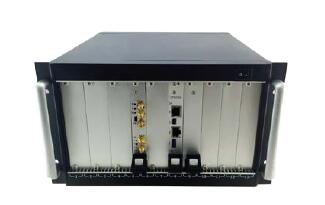

Rugged case


Standard 3U structure

5 VPX slots
Anti interference and vibration resistance
Air cooled structure
220 V standard power supply
CPU module
Intel? 3rd core? I7 processor
3615QE (6MB L2 Cache, 4x 2.3 GHz, 45W)
DDR3 + ECC, 4HP, 0 ° C ~ 60 ° C on 4GB board
Interface: serial port, USB, Ethernet, MDP
Air cooled structure
SSD storage board
128GB and 1TB SSD hard disk storage space
It can be expanded to 2T, 4T and other larger space
Data storage rate of SATA 3 x2 400MB / S
Acquisition board
Standard 3U acquisition card
Dual channel 250ms / s acquisition
2GB on board memory
4 reserved I / O interfaces
PCI Gen 2.0 X4 fast data transfer
