Ad digitizer

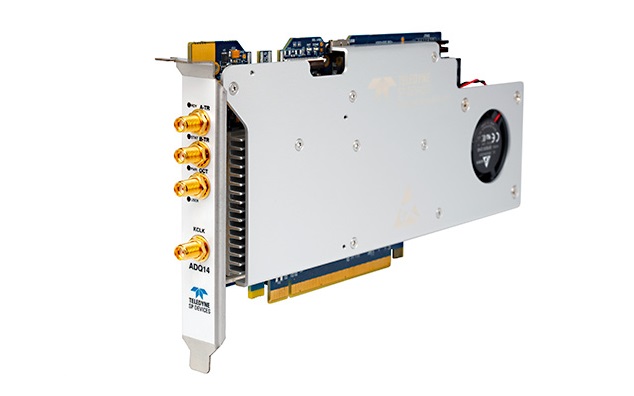

Adq14 14bit PCIe digitizer
Accession 1 / 2 channel, 14bit resolution, 2gsps sampling rate
Accession 3GHz analog input bandwidth and 4GB on-board memory

Accession Flexible selection of channel number, sampling rate and interface


Product features:
Up to 4 analog channels
Up to 2gsps per channel (2-channel version)
14 bit vertical resolution
DC coupled analog bandwidth up to 1.2Ghz
AC coupled analog bandwidth 1.2Ghz
Internal and external clock reference
Clock reference output
Internal and external trigger
Trigger output
Multi channel synchronization
Timestamps for real-time operations
2GB data storage
Pxie / PCIe / USB3.0 interface

Specification
